外形尺寸:232x 18 x 12.85 mm
扫描宽度:216 mm
分 辨 率:200dpi
工作频率:3.5MHZ
光源:红光
信号输出:1路输出
经典应用:马克阅读器和办公自动化设备应用
Module Dimensions(L x W x H):232×18×12.85MM
Width Of Image Scan:216MM
Resolution:200DPI
Clock Frequency(CP):3.5MHz
Focus Position :3.5MM
Light Source:R
Signal Output:1 Analog Output
Application Area :Mark reader and office automation equipment applications

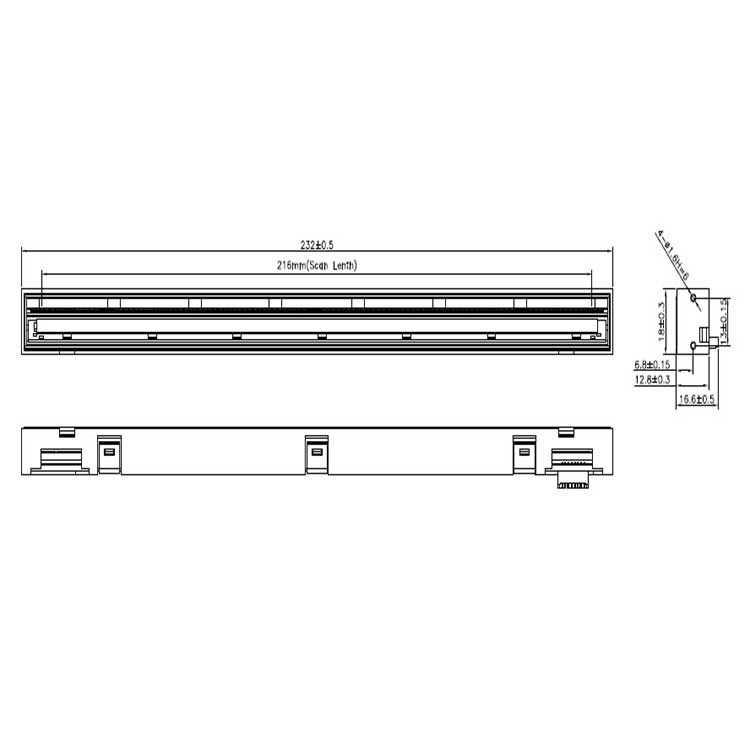

A4-406产品外观尺寸图(unit:mm):
